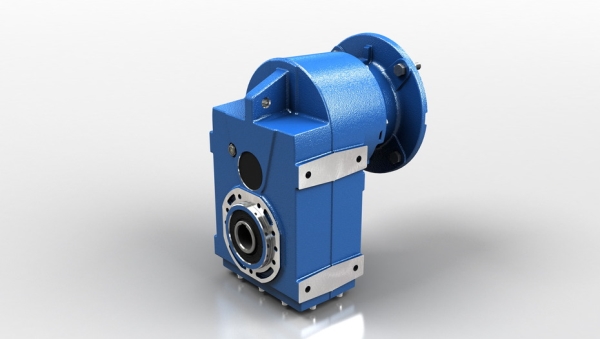

铸铁-轴装式齿轮减速机
铸铁-轴装式齿轮减速机

特别为传送带或传送器设计, 这个系列同样适用于广泛多样的工业领域
系列轴装齿轮减速器提供铸铁型号,可选规格 050 至 125,减速比范围宽,确保在所有操作条件下具有最大效率。
摩铎利 S 系列推出了两个新尺寸机型 - 140 和 150,可拓宽高功率螺旋伞齿轮减速机的安装范围。

型号: 050-060-080-100-125-140-150

Power from 0,12 kW up to 45 kW with three phase 4 pole motors

Reduction ratios between 4,06 and 394,69

Torque max 9.500 Nm

Admissible radial loads max 30.000 N

型号: 050-060-080-100-125

Universal casing

Versions: S... C  Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S...  L Foot-flange mounting / Shrink disc shaft

Gearing with 2 and 3 reduction stages

Modularity

Gears hardened and tempered with shaved or ground profile

Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis

Excellent mechanical strength

Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001

Painted with RAL 5010  blue  epoxy-polyester powder

型号: 140-150

Universal casing

Versions:  S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft

Gearing with 2 and 3 reduction stages

Gears hardened and tempered with ground profile

Cases in EN-GJL-200 grey cast iron

Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001

Gearboxes supplied without lubricant

Painted with RAL 5010  blue  epoxy-polyester powder
